WS P & WR O
This software component for MetaTrader 5 is built to enhance the capabilities of your trading environment. This technical indicator acts as a specialized analysis tool designed to visualize market data. It helps traders identify emerging trends, momentum shifts, and key support or resistance levels by plotting statistical calculations directly onto price charts.
How to Setup and Use WS P & WR O
1. Installation: Place your file in the MQL/Indicators folder via "Open Data Folder" and restart your terminal.
2. Loading: Find the indicator in the Navigator, drag it onto your chart, and configure the input parameters in the popup window.
3. Customization: Press Ctrl+I to open the indicator list, select your tool, and click "Properties" to change colors, levels, or visual styles.
4. Updating: Replace the old file in the Indicators folder with the new version and restart the platform to apply changes.
Frequently Asked Questions
Q: Why is my indicator not showing? A: Verify the file is in the MQL/Indicators folder, or try right-clicking the "Indicators" tree in the Navigator and clicking "Refresh."
Q: Do custom indicators slow down the platform? A: Too many complex indicators can impact performance; remove unused ones via the "Indicator List" (Ctrl+I).
Q: Can I use MT4 indicators on MT5? A: No, MQL4 and MQL5 are distinct languages; ensure the indicator is compiled specifically for your platform version.
Description & Settings
Indicator based on "Automated Support And Resistance" article by Mel Widner published in TASC.

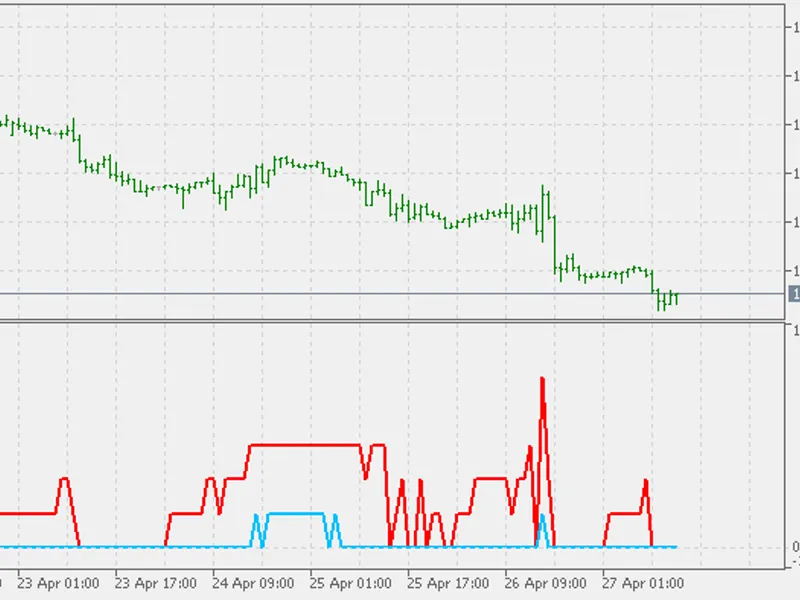

Two oscillators are defined: the WSO (Widner Support Oscillator) and the WRO (Widner Resistance Oscillator).
The WSO compares the current Close with the most recent six support levels. Values range from 0 to 100. WSO = 0 means that the Close is below all of the six support levels, and WSO = 100 means that the current Close is above all of the six support levels. Changes in WSO indicate changes in support, either breaking of an old level or establishing a new one. The WSO is defined as:
WSO = 100(1 – (INT(S1/C) + INT(S2/C) + INT(S3/C) + INT(S4/C) + INT(S5/C) + INT(S6/C))/6)
A similar discussion applies to the WRO. The WRO compares the current Close with the most recent six resistance levels. Values range from 0 to 100. WRO = 0 means that the Close is below all of the six resistance levels, and WRO = 100 means that the current Close is above all of the six resistance levels. Changes in WRO indicate changes in resistance, either breaking an old level or establishing a new one. The WRO is defined as follows:
WRO = 100(1 – (INT(R1/C) + INT(R2/C) + INT(R3/C) + INT(R4/C) + INT(R5/C) + INT(R6/C))/6)
