equity tester

Related: equity data exporter - another powerful expert for MetaTrader 4 traders.

this indicator reads information from the last backtest and plots an equity curve. it can also save values to a file. the indicator only recalculates when the chart is reinitialized or manually updated.

Also recommended: equity recorder for synthetic instrument research - similar expert with strong performance on MetaTrader 4.

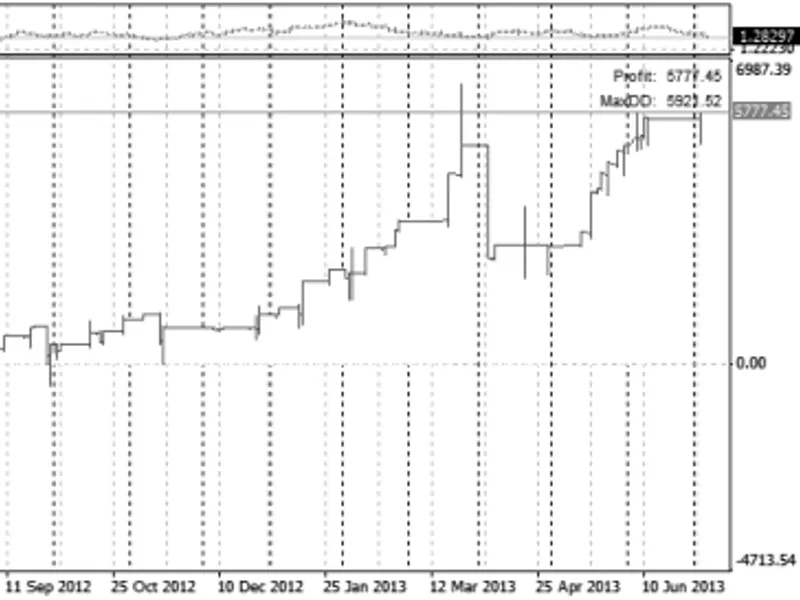

on the chart, maximum drawdowns are marked with dots. the absolute drawdown is shown in red, and the relative drawdown in orange. the top right corner displays profit and absolute drawdown values.

the indicator's settings allow for custom spread, commission, and swap values, which are then reflected in the chart. there's also an option to create an inverted chart, useful for those who believe that reversing a losing strategy might yield a winning one.


indicator parameters:

- chartmode_profit (bool): determines the chart type. if true, a profit chart is displayed; otherwise, an equity chart is shown. essentially, only the scale values change.

- spread (string): custom spread value. leave blank to use the default spread. multiple symbols can be specified with their respective spreads, e.g., eurusd 2 gbpusd 3 nzdusd 4.

- commission (string): custom commission value, similar to spread.

- swap (string): custom swap value for long positions (short positions will have the opposite sign). can be set in the same way as spread.

- reversetrades (bool): reverses trades, i.e., buy at ask becomes sell at bid, and vice versa.

- realtickvalue (bool): if true, uses real tick values for profit and swap calculations. this is especially relevant for cross-currency pairs, as the tester converts the quote currency to the deposit currency using a fixed rate from the 'market watch' (from the future), which is inaccurate. with this option enabled, the indicator calculates profits and swaps based on historical quotes (if available). this may slow down calculations slightly. it's generally insignificant but can be useful for precise results.

- addskippedticks (bool): if true, includes skipped ticks during testing. the tester may discard some ticks or bars from the equity calculation (though these ticks are still stored in the fxt file). enabling this option ensures all tester ticks are considered.

- chartcolor (color): chart color.

- textcolor (color): font color.

- savetofile (bool): save to file.

- filename (string): file name. special variables %expert%, %symbol%, and %period% can be used and will be replaced with the expert name, symbol, and period, respectively.

- filetype_binary (bool): file type. if true, the file is binary {int,double,double,double,double}; otherwise, it's text.

- filedelimiter (string): text file delimiter. if left blank, a tab character is used.


image:

You may also like: strategy tester expert advisor - excellent alternative for expert users on MetaTrader 4.

#property copyright "robotfx"
#property link "https://robotfx.org"
#property indicator_separate_window
#property indicator_buffers 7
#import "user32.dll"
  int getparent (int hwnd);
  int getancestor (int hwnd, int gaflags);
  int getdlgitem (int hdlg, int niddlgitem);
#import "kernel32.dll"
  int lstrcpyn (string a, string b, int count);       //

.......
