Inter
Info
The Inter is a Indicator for MetaTrader 5 that this indicator was designed to facilitate the acquisition of synchronized and normalized data for neural network inputs. Data synchronization is achieved based on the symbol where the indicator is installed.
Usage
This tool is typically used for enhancing chart analysis and decision making.
Platform
This Indicator works exclusively on MetaTrader 5 (both build 600+ and newer versions).
Setup
Place the downloaded file in MQL5/Indicators folder via File ? Open Data Folder in MetaTrader 5.
How to Install and Use Inter
1. Installation: Place your file in the MQL/Indicators folder via "Open Data Folder" and restart your terminal.
2. Loading: Find the indicator in the Navigator, drag it onto your chart, and configure the input parameters in the popup window.
3. Customization: Press Ctrl+I to open the indicator list, select your tool, and click "Properties" to change colors, levels, or visual styles.
4. Updating: Replace the old file in the Indicators folder with the new version and restart the platform to apply changes.
Frequently Asked Questions
Q: Why is my indicator not showing? A: Verify the file is in the MQL/Indicators folder, or try right-clicking the "Indicators" tree in the Navigator and clicking "Refresh."
Q: Do custom indicators slow down the platform? A: Too many complex indicators can impact performance; remove unused ones via the "Indicator List" (Ctrl+I).
Q: Can I use MT4 indicators on MT5? A: No, MQL4 and MQL5 are distinct languages; ensure the indicator is compiled specifically for your platform version.
What this tool does
This indicator was designed to facilitate the acquisition of synchronized and normalized data for neural network inputs.
Typical Use Case
This Indicator excels in automated trading and technical analysis on MetaTrader 5.
Compatible Platform & Setup
This Indicator works on MetaTrader 5. Place the file in the MQL5/Indicators folder and restart the terminal.
Description & Settings
Related: interactive correlation matrix heatmap for mt5 - another powerful indicator for MetaTrader 5 traders.
This indicator was designed to facilitate the acquisition of synchronized and normalized data for neural network inputs.Also recommended: clear view - price pointer, round number marker, period separator, and template - similar indicator with strong performance on MetaTrader 5.
Data synchronization is achieved based on the symbol where the indicator is installed.

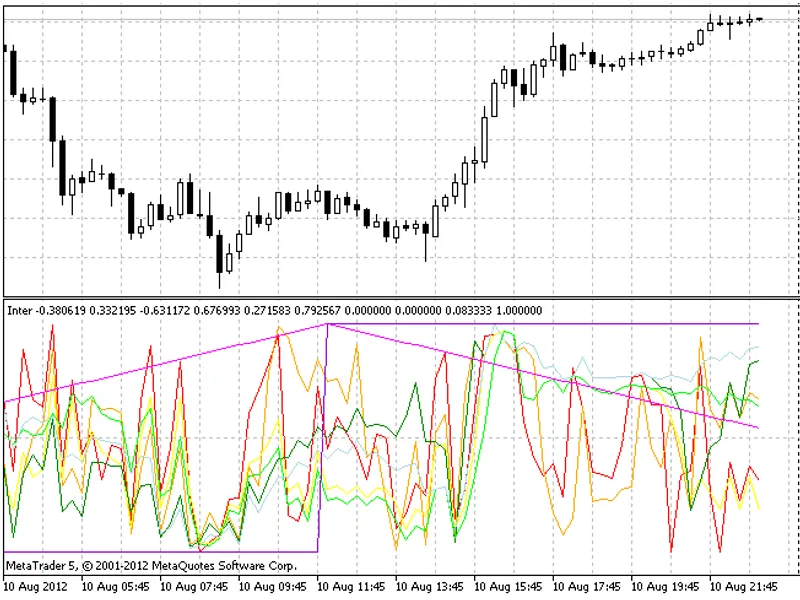

The indicator can display up to 10 lines (buffers) from various symbols, timeframes, and signals.
Input parameters:
- Instrument: Select the instrument (symbol) from the list.
- Variant: Choose the indicator calculation variant from the list.
- Timeframe: Specify the timeframe for indicator calculation.
- Parameter: Set the indicator calculation parameter (period). The 'Variant' parameter can be:
- None: Not calculated.
- HLP: Calculated as the ratio of maximums and minimums for the previous 'Parameter' bars.
- OP0_OPN: Open[0] - Open[Parameter].
- RSI: Normal RSI with 'Parameter' period.
- Stoch: Normal Stochastic with 'Parameter, 3, 3' parameters.
- OP0_MA: Open[0] - IMA[0] with 'Parameter' smoothing period.
- MA0_MA1: MA[0] - MA[1] with 'Parameter' smoothing period.
- Time: Parameter time of day (can be 0 or >=1).
Note that when calculating OP0_OPN, OP0_MA, and MA0_MA1, normalization to -1; +1; range is applied as new data arrives. In such cases, it's advisable to set the maximum bars calculate parameter to twice the required data amount.
You may also like: Internal Bar Strength (IBS) Indicator - excellent alternative for indicator users on MetaTrader 5.
Source Code
#property copyright "robotfx"
#property link "https://robotfx.org"
#property version "1.00"
#property indicator_separate_window
#property indicator_buffers 10
#property indicator_plots 10
#property indicator_label10 "in0"
#property indicator_type10 draw_line
#property indicator_color10 clrdarkviolet
#property indicator_style10 style_solid.......
⚠ Limitations & Risk Warning
- This tool is provided for educational and testing purposes only.
- Past performance does not guarantee future results.
- Trading involves substantial risk of loss. Use on a demo account first.
- Results may vary depending on market conditions, broker, and settings.
- We recommend thorough backtesting and forward testing before using with real funds.
