Failed Breakout Detector: Identifying Trapped Traders

Related: Session Range Breakout: Asia, London, and New York High/Low Levels - another powerful indicator for MetaTrader 5 traders.

Failed Breakout Detector identifies breakouts from recent trading ranges and, crucially, those that subsequently fail. This is a price action tool that highlights instances where traders chasing a breakout were trapped.

Also recommended: Compression Breakout Channels with Buy and Sell Volume Analysis - similar indicator with strong performance on MetaTrader 5.

Example: US500 M5 shows a failed downward breakout (green arrow) at 17:00. The sellers who were trapped by this failure fueled the subsequent rally. Blue dots indicate the bars that initiated the breakout.

Chart Interpretation

The trading range is defined by the highest high and lowest low over the last N bars (default is 12).

A breakout occurs when a bar closes outside this range, exceeding it by a small buffer based on the Average True Range (ATR). These breakout bars are marked with a small blue dot.

If a subsequent bar closes back within the range within K bars (default is 3), the breakout is considered failed. A failed upward breakout is indicated by a red arrow above the bar, and a failed downward breakout by a green arrow below the bar.

If the price remains outside the range for K bars, the breakout is confirmed, and no further signals are generated for that breakout.

A label in the chart corner displays a running count of the day's failed breakouts (upward and downward).

Significance of Failed Breakouts

Traders who entered long on an upward breakout and then observe a bar closing back within the range are trapped. Their exit, often through selling, can initiate a move in the opposite direction. The same principle applies to failed downward breakouts.

On range-bound days, failed breakouts offer opportunities to fade against the edges of the range. On trending days, their rarity can be a significant indicator.

All calculations are based on closed bars, ensuring no repainting of signals. The range's height is filtered by ATR (default 0.5 to 4.0 ATR), excluding extremely tight or wide ranges. The tool tracks only one breakout at a time; it looks for the next breakout only after the previous one has either failed or been confirmed.

Example: DE40 M5 illustrates two failed downward breakouts (17:00 and 17:50) near the afternoon low, followed by a rally to the day's high. The label accurately shows the count of failed breakouts for the day.

Input Parameters

Number of bars to form the range (default: 12)

Number of bars within which a breakout must hold or it is considered failed (default: 3)

ATR period for range height filtering (default: 14)

Minimum and maximum range height in ATR units (default: 0.5 / 4.0)

Minimum closing distance beyond the range in ATR units (default: 0.1)

Option to display breakout dots (default: true)

Option to display the 'failed breakouts today' label, including its corner position, X/Y offset, font size, and color (default: true)

Alerts for failed breakouts: options for pop-up, push notification, and sound (all off by default)

Example: XAUUSD M5 demonstrates three failed downward breakouts during a slow decline, each followed by a price bounce.

Buffers for Expert Advisors (EA) via iCustom (value is 0 if no signal)

0 – breakout up (price of the dot)
1 – breakout down
2 – failed breakout up (bearish signal)
3 – failed breakout down (bullish signal)
4 – signal: +1 for failed breakout down (bullish), -1 for failed breakout up (bearish), 0 for no signal
5 – count of failed breakouts for the current day

Example: EURUSD M15 shows effectiveness on forex. It highlights one failed downward breakout (09:30) and one failed upward breakout (13:30, red arrow), preceding a sell-off.

Notes

This indicator is versatile and functions on any symbol and timeframe. It was primarily developed for intraday index trading on M5 charts (e.g., DAX, US500).

Screenshots were captured on October 19, 2026, using a black-on-white chart theme.

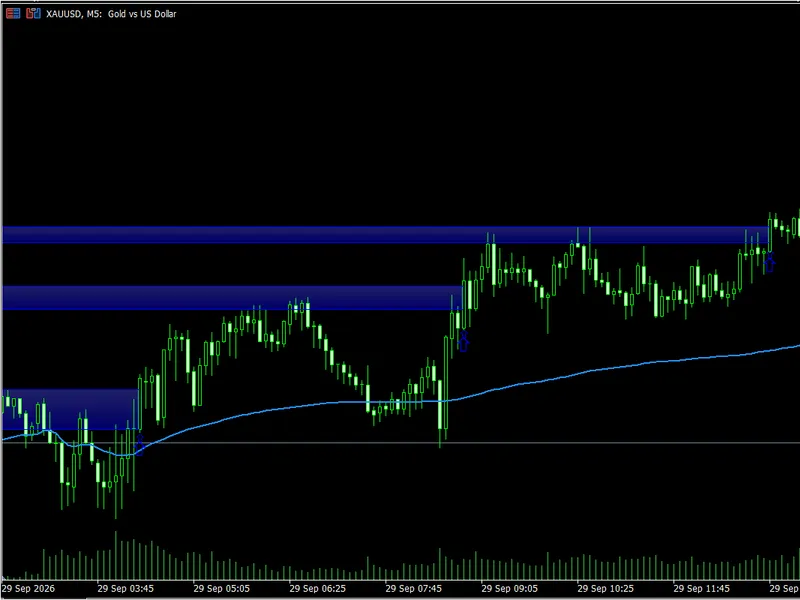

You may also like: Momentum VWAP Barrier Breakout Indicator - excellent alternative for indicator users on MetaTrader 5.

#property copyright "RobotFX"
#property link "https://robotfx.org"
#property version     "1.00"
#property description "This code is educational. Feel free to use, modify and upgrade as you wish. Visit ROBOTFX.ORG for professional trading tools"
#property indicator_chart_window
#property indicator_buffers 7
#property indicator_plots   4
#property indicator_label1  "Breakout up"
#property indicator_type1   DRAW_ARROW
#property indicator_color1  clrDodgerBlue

.......
