Stochastic Momentum Oscillator Blau SM Stochastic
This tool for MetaTrader 5 is specifically engineered to streamline your trading operations. This technical indicator acts as a specialized analysis tool designed to visualize market data. It helps traders identify emerging trends, momentum shifts, and key support or resistance levels by plotting statistical calculations directly onto price charts.
How to Setup and Use Stochastic Momentum Oscillator Blau SM Stochastic
1. Installation: Place your file in the MQL/Indicators folder via "Open Data Folder" and restart your terminal.
2. Loading: Find the indicator in the Navigator, drag it onto your chart, and configure the input parameters in the popup window.
3. Customization: Press Ctrl+I to open the indicator list, select your tool, and click "Properties" to change colors, levels, or visual styles.
4. Updating: Replace the old file in the Indicators folder with the new version and restart the platform to apply changes.
Frequently Asked Questions
Q: Why is my indicator not showing? A: Verify the file is in the MQL/Indicators folder, or try right-clicking the "Indicators" tree in the Navigator and clicking "Refresh."
Q: Do custom indicators slow down the platform? A: Too many complex indicators can impact performance; remove unused ones via the "Indicator List" (Ctrl+I).
Q: Can I use MT4 indicators on MT5? A: No, MQL4 and MQL5 are distinct languages; ensure the indicator is compiled specifically for your platform version.
Description & Settings
Stochastic Oscillator by William Blau is based on Indicator (see ).
WilliamBlau.mqh must be placed in
terminal_data_folder
\MQL5\Include\
Blau_SM_Stochastic.mq5 must be placed in
terminal_data_folder
\MQL5\Indicators\

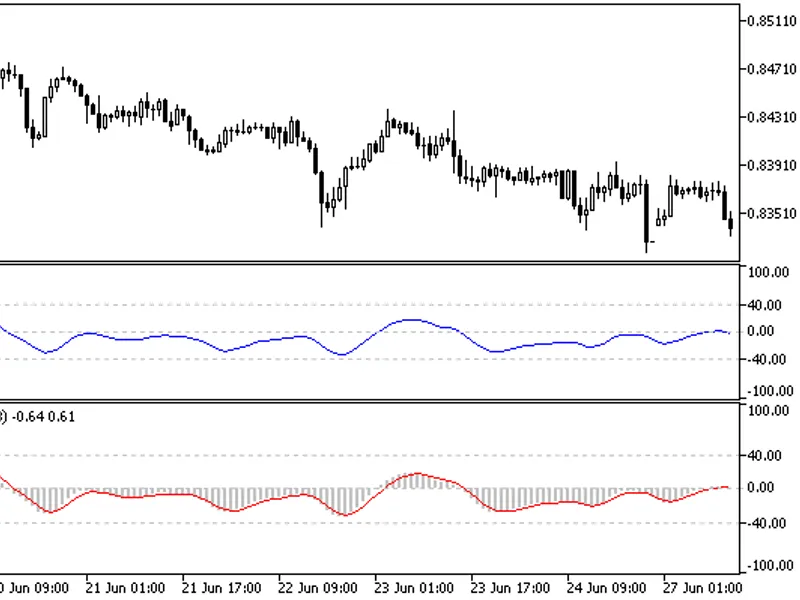

Stochastic Momentum Oscillator
Calculation:
Stochastic Momentum Oscillator is calculated as follows:
where:
SM_Stochastic() - Stochastic Momentum Index SMI(price,q,r,s,u);
SignalLine() - Signal Line - with period ul, applied to Stochastic Momentum Index;
ul - period of EMA smoothing of a Signal Line.
Input parameters:
graphic plot #0 - Stochastic Momentum Index:
q - period of Stochastic Momentum (by default q=5);
r - period of the 1st EMA, applied to Stochastic Momentum (by default r=20);
s - period of the 2nd EMA, applied to result of the 1st smoothing (by default s=5);
u ;- period of the 3rd EMA, applied to result of the 2nd smoothing (by default u=3);
graphic plot #1 - Signal Line:
ul - period of EMA smoothing of a Signal Line, applied to Stochastic Momentum Index (by default ul=3);
AppliedPrice - (by default AppliedPrice=PRICE_CLOSE).
Note
:
q>0;
r>0, s>0, u>0. If r, s or u =1, smoothing is not used;
ul>0. if ul=1, the Signal Line and Stochastic Momentum Index are the same;
Min. rates=(q-1+r+s+u+ul-4+1).
